UHV PEEK Connector - 9C - Male

Price

$162.00

Specifications

Model Number

9C-PKP

Materials

PEEK (Polyetheretherketone Polymer)

RoHS Compliant

Yes

Max. Bake Temperature

250ºC

Max. Operating Temperature

250ºC

Max. Vacuum Level

1x10E-10 Torr

Voltage rating

500 VDC max (when assembled)

Current rating

5 AMPs per pin (20% of pins at any given time)

Number Contacts

9 (Contacts sold separately)

Gender

Male

Other Information

Interface Type: Subminiature-C (Sub-C)

Outline Drawing (DEPRECATED)

PEEK Connector, 9C 9 Pin Male 100140

3D Model - Zipped STEP file (DEPRECATED)

PEEK Connector, 9C 9 Pin Male 100140.ZIP

eDrawing (DEPRECATED)

PEEK Connector, 9C 9 Pin Male 100140.EPRT

XCart Product Code

100140

stock level (qty)

732

Images

Male 9 Pin, Circular UHV PEEK Connector, Sub-C

Variations

Product Category

Additional Categories

Detailed Images

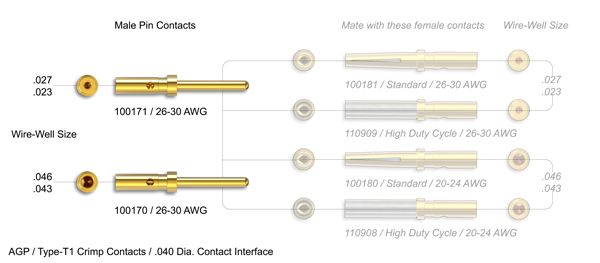

Diagram of 0.04" Male Contacts

Outline Drawing

100140_3.pdf (79.51 KB)

eDrawing

100140_3.eprt (99.28 KB)

3D Model - Zipped STEP file

100140_3.zip (106.11 KB)

XCart Product ID

16204
