Mil-C-5015 Feedthroughs
Accu-Glass Products' circular hermetic power feedthroughs are designed to meet Mil-C-5015 specifications. These circular feedthroughs are available in either a 3-pin or 6-pin configuration. Gold plated pins are in a straight through pin-to-pin design, are hermetically sealed, and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.
Ultrahigh vacuum cable assemblies with PEEK (polyetheretherketone) connectors and Kapton® insulated 18 AWG cables are available to meet the demands of UHV environments. They are fitted with a captured stainless steel vented screw that provides a means of securely locking them to their mating feedthrough. Air service cable assemblies use standard Mil-C-5015 connectors. Custom vacuum and air-service cable assemblies are available on request.
Features
- Mil-DTL-5015 3 and 6-Pin Interface
- High temperature rated to 250°C
- Conflat® and ISO NW compatible mounts
- Kapton® insulated vacuum cables
- PEEK connector with locking screws
- Air-service cables / Connectors
- UHV compatible construction
- Feedthrough/Cable Kits Available
- Custom solutions on request
Specifications
| Electrical | |
| Voltage 1, Maximum | 700 VDC |
| Current 2, Maximum | 10 A |
| Material | |
| Shell, Stainless Steel | 304 |
| Pins, Au-Plated | Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Air Ni-Plated | Aluminum |
| Connector, UHV 3 | PEEK |
| Vacuum Range | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 4 | |
| Feedthrough | -200 to 250°C |
| Flange, Conflat® | -200 to 450°C |
| Flange, ISO | -26 to 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV PEEK | 250°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Notes |

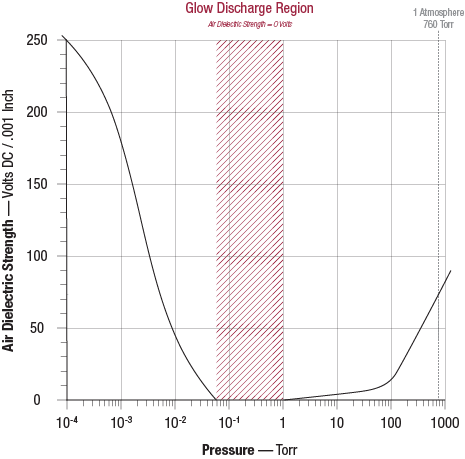

- Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr.
- For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
- PEEK is a polyether ether ketone thermoplastic.
- Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
- Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
