<h2>Subminiature Power-D and Mil-C-5015</h2><p>AGP offers two styles of Power <a href="/what-hermetic-feedthrough">hermetic feedthroughs</a> ideally suited for<strong> Ultrahigh (UHV) </strong>or<strong> High In-Vacuum (HV)</strong> applications requiring either 10 or 20 AMPs.</p><p><strong>20-AMP</strong> power feedthroughs along with vacuum and air service cable assemblies and components are offered in a <strong>Subminiature Power-D</strong>, 3, or 5 pin standard configuration.</p><p><strong>10-AMP</strong> power feedthroughs along with vacuum and air service cable assemblies and components are offered in a <strong>Mil-C-5015</strong> circular, 3, or 6 pin standard configuration.</p><p>Please click one of the categories below for more detailed information about that product range.</p><p> </p><table style="width:100%;" border="1" cellpadding="1" cellspacing="1" dir="ltr" summary="Power-D and Mil-C-5015 Feedthrough Specifications"><caption>Power-D and Mil-C-5015 Feedthrough Specifications</caption><thead><tr><th style="background-color:rgb(221, 221, 221);text-align:left;" scope="col"><strong>Electrical</strong></th><th style="background-color:rgb(221, 221, 221);" scope="col"> </th></tr></thead><tbody><tr><td><ul><li>Power-D - Voltage, Maximum</li><li>Mil-C-5015 - Voltage, Maximum</li><li>Power-D - Current, Per Pin Maximum @ 20ºC</li><li>Mil-C 5015 Circular - Current, Per Pin Maximum @ 20ªC</li></ul></td><td style="text-align:right;"><br>500 VDC<br>700 VDC<br>20 Amps*<br>10 Amps*</td></tr><tr><td><span style="font-size:10px;">* For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.</span></td><td style="text-align:right;"> </td></tr></tbody></table><table style="width:100%;" border="1" cellpadding="1" cellspacing="1" summary="Power-D and Mil-C 5015 Feedthrough Material Specifications"><caption>Power-D and Mil-C 5015 Feedthrough Material Specifications</caption><thead><tr><th style="background-color:rgb(221, 221, 221);text-align:left;" scope="col"><strong>Material</strong></th><th style="background-color:rgb(221, 221, 221);" scope="col"> </th></tr></thead><tbody><tr><td><ul><li>Shell</li><li>Pins</li><li>Seal / Insulator</li><li>Connector, Air</li><li>Connector, Vacuum</li></ul></td><td><p style="text-align:right;"><br>304 Stainless Steel<br>Au plated, Ni-Fe alloy<br>Glass-Ceramic<br>Ni plated Aluminum Alloy and Delrin®<br>Peek*</p></td></tr><tr><td><span style="font-size:10px;">* Peek is a Polyether-ether-ketone thermoplastic.</span></td><td> </td></tr></tbody></table><table style="width:100%;" border="1" cellpadding="1" cellspacing="1" id="Feedthrough Vacuum Range" summary="Feedthrough Vacuum Range Specifications"><caption>Feedthrough Vacuum Range Specifications</caption><thead><tr><th style="background-color:rgb(221, 221, 221);text-align:left;" scope="col"><span><strong>Vacuum Range</strong></span></th><th style="background-color:rgb(221, 221, 221);" scope="col"> </th></tr></thead><tbody><tr><td><ul><li>UHV, Ultrahigh vacuum</li><li>HV, High vacuum</li></ul></td><td style="text-align:right;"><br>1x10<sup>-10</sup> Torr<br>1x10<sup>-8</sup> Torr</td></tr></tbody></table><table style="width:100%;" border="1" cellpadding="1" cellspacing="1" id="Feedthrough Temp Range" summary="Feedthrough Temperature Range Specifications"><caption>Feedthrough Temperature Range Specifications</caption><thead><tr><th style="background-color:rgb(221, 221, 221);text-align:left;" scope="col"><span><strong>Temperature Range</strong></span></th><th style="background-color:rgb(221, 221, 221);" scope="col"> </th></tr></thead><tbody><tr><td><ul><li>Feedthrough</li><li>Flange Mount, Conflat</li><li>Flange Mount, ISO</li><li>Connector / Cable, Air</li><li>Connector / Cable, Vacuum</li><li>Thermal Gradient</li></ul></td><td><p style="text-align:right;"><br>-200ºC to 250ºC<br>-200ºC to 450ºC<br>-26ºC to 150ºC<br>80ºC<br>250ºC<br>25ºC / Minute Maximum</p></td></tr><tr><td><span style="font-size:10px;">* Overall assembly ratings must be adjusted to that of the lowest-rated component.</span></td><td> </td></tr></tbody></table><p>Ratings for in vacuum PEEK cable assemblies and Air-Service Cables are listed on the next pages.</p><p>This category is actually two different styles of feedthroughs. Please click one of the categories below for more detailed information about that product range.</p>
Power-D™ / Mil-C-5015 High Power Feedthroughs
AGP offers two styles of 10 and 20 amp high power/current hermetic feedthroughs ideally suited for Ultrahigh (UHV) or High In-Vacuum (HV) applications requiring high power inputs.
20-Amp power feedthroughs with mating vacuum and air service cable assemblies and components are offered in Subminiature Power-D™ 3 and 5 pin configurations.
10-Amp power feedthroughs with mating vacuum and air service cable assemblies and components are offered with Mil-DTL-5015 circular connectors, in 3 and 6 pin configurations.
Please click on the product category tiles listed above for detailed information on each of these product offerings.
Features
- 10 and 20 Amp High Current Feedthroughs
- Subminiature Power-D™ 3 and 5-Pin Interface
- MIL-DTL-5015 3 and 6-Pin Interface
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO NW compatible mounts
- Kapton® insulated vacuum cables
- PEEK connector with locking screws
- Air and Vacuum service cables / Connectors
- Custom solutions on request
Specifications
| Electrical | |
| Voltage 1, Maximum | |
| Power-D™ | 500 VDC |
| MIL_DTL-5015 | 700 VDC |
| Current, Maximum | |
| Power-D™ | 20 A |
| MIL_DTL-5015 | 10 A |
| Material | |
| Shell, Stainless Steel | 304 |
| Pins, Au plated | Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Air | Delrin® |
| Connector, UHV 2 | PEEK |
| Vacuum Range | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 3 | |
| Feedthrough | 250°C |
| Flange, Conflat® | 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV PEEK | 250°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Notes |

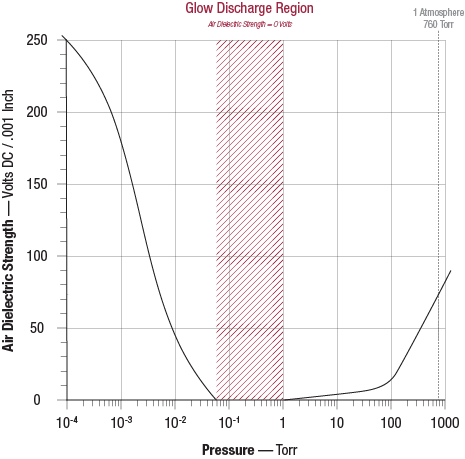

- Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr. Feedthroughs are designed for high power applications.
- PEEK is a polyether ether ketone thermoplastic.
- Overall assembly ratings must be adjusted to that of its lowest rated component.
- Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
