Price
$392.00
Specifications
Model Number
15KAP-4TC2P-19SC or 15KAP-4TC2P-39SC
Materials
PEEK, Kapton, Chromel, Alumel
RoHS Compliant
Yes
Max. Bake Temperature
250ºC
Max. Vacuum Level
1x10E-10 Torr
Number Contacts
6, 2-TC pairs and 2-Power
Gender
Female
Contact Material
Chromel, Alumel, Cu alloy-Au-plt
Other Information

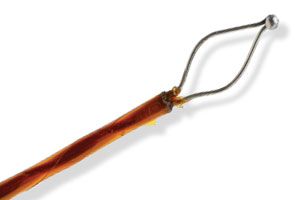

Thermocouple feedthroughs do not measure temperature, but merely provide a conduit to bring the EMF signal generated at a thermocouple junction through a vacuum vessel wall to an external voltage measuring or temperature readout instrument. Type-K thermocouples with positive Chromel wires and negative Alumel wires are recommended for use in clean oxidizing atmospheres. The maximum operating temperature for these alloys is 1260 C for larger wire sizes. The useful temperature measuring range for a Type-K thermocouple is between (-)200 C to (+)1250 C.
Catalog Page
24Outline Drawing (DEPRECATED)
3D Model - Zipped STEP file (DEPRECATED)
100820.zipeDrawing (DEPRECATED)
100820.EPRTXCart Product Code
100820
stock level (qty)
995
Images
Variations
Product Category
Additional Categories
Detailed Images
Outline Drawing
100820_9.pdf (478.78 KB)
eDrawing
100820_9.eprt (119.81 KB)
3D Model - Zipped STEP file
100820_9.zip (338.9 KB)
XCart Product ID
16372
