<p><img class="media-image" src="/sites/default/files/Submin-D-Coax-KF-01.jpg" alt="Coax-D ISO KF / LF Feedthroughs" width="500" height="295" title="Coax-D ISO KF / LF Feedthroughs" typeof="foaf:Image"></p><h2>Sub-D Coaxial Feedthroughs on ISO Flanges</h2><div class="views-field views-field-field-summary"><div class="field-content"><div class="views-field views-field-field-summary"><div class="field-content"><p>These feedthroughs are mounted on KF Flanges that incorporate the industry standard "Quick Release Hinged Clamp", making it easy to mount/demount to your existing KF Flange ports.</p><h3><strong>Features</strong></h3><p>• 1, 3, and 5 Subminiature-D interface<br>• Floating Shield Design<br>• Kapton® insulated 50-Ohm cable<br>• High temperature rated to 150°C<br>• UHV compatible construction<br>• ISO compatible mounts<br>• PEEK Connector with Locking Screws<br>• Air service cables/connectors<br>• Custom solutions on request</p></div></div></div></div>
Subminiature Coax-D™ ISO NW Feedthroughs
Accu-Glass Coax-D™, floating shield coaxial feedthroughs are available in 1, 3, and 5 pin coaxial configurations that are sealed into standard size 9, 15 and 25 Subminiature-D shells respectively. Feedthroughs are mounted on Conflat® compatible CF or ISO flanges for UHV and high vacuum service.
The electrical shields on these coaxial feedthroughs 'float' relative to ground, thus providing a secondary and concentric electrical path around each conductor pin. Single-pin coaxial feedthroughs also include four (4), non-shielded, instrumentation pins for added connectivity options. Gold plated conductor pins and shields are constructed in straight-through pin-to-pin design. Pins and shield are electrically insulated and hermetically sealed to the stainless steel Subminiature-D shells using the latest in glass-ceramic and metal bonding technology.
Ultrahigh vacuum cable assemblies fitted with PEEK polymer connectors and Kapton® insulated 50-Ohm coaxial cable are available to meet the rigorous demands of UHV vacuum environments. Connectivity accessories are also available and sold separately. Vacuum and air-side cable assemblies, individual connectors and other accessories begin on page 58. Custom Coax-D™ Subminiature-D coaxial solutions are available on request.
Features
- 1, 3 and 5 Subminiature-D interface
- Floating Shield Design
- Kapton® insulated 50-Ohm cable
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO compatible mounts
- PEEK Connector with Locking Screws
- Air service cables / connectors
- Custom solutions on request
Specifications
| Electrical | |
| Voltage 1, Maximum | 500 VDC |
| Current 2, Maximum | 5 A |
| Material | |
| Shell, Stainless Steel | 304 |
| Coaxial Shield | Ni-Fe |
| Pins, Au plated | Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Vacuum 3 | |
| Subminiature-D | PEEK |
| BNC | PEEK, Brass |
| SMA | PEEK, Brass |
| User-End | PEEK, BeCu |
| Connector, Air | Composite |
| Cable Insulation | Kapton® |
| Vacuum Range 4 | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range | |
| Feedthrough | 250°C |
| Flange, Conflat® | 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV PEEK | 250°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Notes |

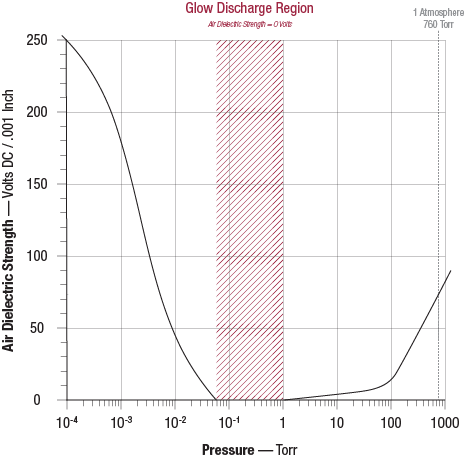

- Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10E-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
- For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
- PEEK is a polyether ether ketone thermoplastic.
- Overall assembly ratings must be adjusted to that of its lowest rated component.
